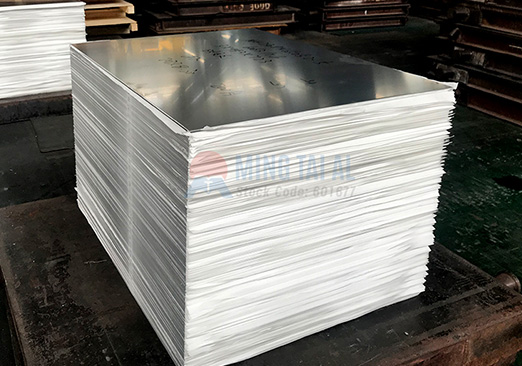

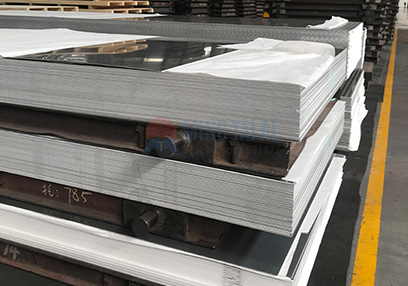

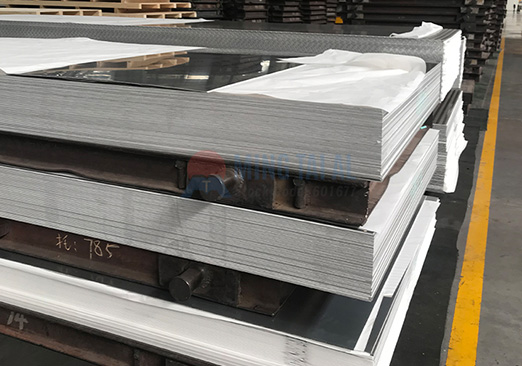

1070 aluminum sheet is industrial pure aluminum with low density, good electrical and thermal conductivity, good corrosion resistance, good plastic processing performance, and can be processed into plates, strips, foils and extruded products, etc
1070 aluminum sheet is industrial pure aluminum with low density, good electrical and thermal conductivity, good corrosion resistance, good plastic processing performance, and can be processed into plates, strips, foils and extruded products, etc., and can be gas welded, argon arc welded, and spot welded. Industrial pure aluminum cannot be strengthened by heat treatment, but can be cold deformed to increase strength. The form of heat treatment is annealing.
The aluminum content of 1070 aluminum sheet is 99.7%. It has the characteristics of high plasticity, corrosion resistance, good electrical conductivity and thermal conductivity. Its advantages are often used to manufacture some structural parts with specific properties. It is widely used in products with low strength requirements, such as chemical instruments, thin plate processing parts, deep drawing or spinning concave utensils, welding parts, heat exchangers, clock surfaces and dials, nameplates, kitchen utensils, decorations, reflective appliances, negative electrode materials of electronic capacitors, cosmetic bottle caps, charging piles, anti-corrosion and thermal insulation, ventilation system parts, heat sinks, etc.
|
Alloy |
1070 |
|
Temper |
F,O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H111,H112,H114 |
|
Thickness（mm） |
0.1-500 |
|
Width（mm） |
100-2600 |
|
Length（mm） |
500-15000 |
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Ni |
Zn |
V |
Ti |
Zr |
Others |
Al |
|
1070 |
0.20 |
0.25 |
0.04 |
0.03 |
0.03 |
|
|
0.04 |
0.05 |
0.03 |
|
0.03 |
99.7 |
Contains over 99.7% aluminum, ensuring excellent conductivity and corrosion resistance.
Ideal for use in humid or harsh environments without surface degradation.
Widely used in electrical applications due to its high conductivity.
Suitable for heat exchangers and cooling systems.
Easy to process and form into various shapes.
Supports sustainable and green production practices.
"We've been using 1070 aluminum sheets for our electrical components, and the performance is outstanding. The sheets are easy to work with, corrosion-resistant, and provide excellent conductivity. Highly reliable material for our production needs."
