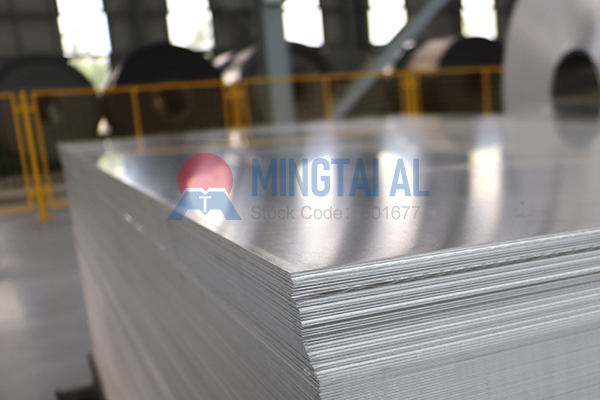

3003 and 5052 Aluminum Sheet for Deep Drawing

Deep drawing demands a material that can stretch and compress without failure. When choosing between 3003 and 5052 aluminum sheet for deep drawing, it’s essential to understand how each alloy behaves under pressure. Both are popular, but they suit very different applications. Pick the wrong one, and you may face cracked parts, wrinkled surfaces, or excessive thinning—all of which drive up scrap rates and delay production.

This guide compares them across five practical dimensions, so you can make a confident decision.

At a Glance – Key Differences

> A quick rule of thumb: For deep, complex shapes → start with 3003. For higher strength and corrosion resistance → lean toward 5052.

Deep Drawing Performance – Which One Draws Deeper?

This is usually the top concern. 3003 is known for its forgiving nature in deep drawing. Its high ductility allows it to stretch uniformly, even around tight corners and asymmetric profiles. Many battery case and cookware manufacturers rely on 3003 because it delivers stable results with fewer forming defects. In the O temper (fully annealed), its formability reaches its peak.

5052 can also be deep drawn, but it demands more careful tooling. In H32 or H34 tempers, small bend radii may cause edge cracking. If you choose 5052 for deep drawing, the O temper is strongly recommended—it offers better plasticity, though still slightly less than 3003 for the most challenging draws.

Finished Part Strength – How Strong Does the Component Need to Be?

The final use of the drawn part determines the strength requirement. 5052 offers significantly higher tensile and yield strength than 3003. Parts that endure vibration, impact, or moderate loads will benefit from the added robustness of 5052.

3003 sits in the moderate strength range, suitable for general enclosures, housings, and non-structural components. Selecting 3003 avoids over-engineering when the application doesn’t demand high strength, which also helps control material costs.

Corrosion Resistance and Weldability – Environment and Fabrication

For corrosion resistance, 5052 excels in saltwater, humid, or chemically aggressive environments thanks to its magnesium content (around 2.2–2.8%). It is the go-to choice for marine equipment, fuel tanks, and outdoor structures. 3003 performs well in atmospheric and fresh water conditions, but it is not as durable when exposed to prolonged salt or corrosive agents.

Both alloys are weldable via MIG or TIG. 5052 requires moderate heat input control to avoid intergranular cracking, while 3003 offers a wider welding window and is more forgiving for general fabrication.

*Note: Our focus is on supplying high-quality aluminum sheet. We do not provide surface treatment or secondary processing, so you have full flexibility to arrange those steps with your preferred partners.*

A Simple Decision Path – Ask Three Questions

– Is the draw deep and the shape complex?

  → Yes: Choose 3003 (lower scrap risk, smoother forming)

  → No: Both are possible; move to the next question.

– Will the finished part endure vibration or moderate-to-heavy loads?

  → Yes: Choose 5052 (strength advantage is clear)

  → No: 3003 is sufficient.

– Will the part be exposed to salt, moisture, or chemicals?

  → Yes: Choose 5052 (superior corrosion protection)

  → No: 3003 is more cost-effective.

Most projects will find a clear direction after these three steps.

FAQ

Q: Which temper is best for deep drawing?

A: O temper (fully annealed) offers the best formability; 3003 H14 can also handle many standard draws.

Q: Is 5052 much more expensive than 3003?

A: Usually slightly higher, depending on thickness, quantity, and market conditions.

Q: Can both alloys be welded reliably?

A: Yes, both are weldable with MIG or TIG; 5052 needs careful heat control.

Q: Which one is safer for complex deep-drawn parts?

A: 3003, because it offers higher ductility and lower cracking risk.

Selecting the Right Option for Your Production

The choice ultimately rests on the balance between formability, strength, and service environment. For demanding draws with moderate strength needs, 3003 is the workhorse. For parts that must survive harsh conditions and higher loads, 5052 is the dependable upgrade.

For consistent quality and reliable mechanical properties in 3003 and 5052 aluminum sheet for deep drawing, Mingtai Aluminum is ready to support your forming processes. Contact us to discuss your specific requirements and order specifications.
