Choosing between 5083 vs 6061 for welding is one of the most common decisions in structural fabrication. Both alloys are widely used, but their strengthening mechanisms differ, and that difference shapes weld behavior. Pick wrong, and the heat-affected zone may become the weak link. Pick right, and fabrication stability and service life become far more controllable.
5083 and 6061 sit in different alloy families, and that difference explains much of how they behave under the arc.
5083 — non-heat-treatable (5xxx Al-Mg).
Its strength comes from magnesium in solid solution and from work hardening. Welding heat mainly causes local annealing, so the effect stays relatively controlled.
6061 — heat-treatable (6xxx Al-Mg-Si).
T6 condition gives high base-metal strength. But welding heat dissolves or coarsens the strengthening precipitates in the heat-affected zone. That softening is usually irreversible.
> If post-weld solution treatment and aging are not possible, 6061-T6 design values must be conservative.
A simple way to remember it: 5083 welding behaves more like local annealing, while 6061 often shows irreversible softening.
6061 is more sensitive to solidification cracking, especially in thick plate or highly restrained joints. 5083 has lower hot-cracking sensitivity and a wider process window. Both alloys require porosity control, but 6061’s higher thermal conductivity makes heat input and distortion control more sensitive.
In real production, groove design, preheat and interpass temperature, and fixture restraint can either amplify or ease these differences.
– Hot cracking: 6061 needs more care; 5083 is more forgiving.
– Porosity: both must control hydrogen sources and shielding gas.
– Process window: 5083 is wider, making it suitable for field welding and batch production.
As a result, 5083 is generally easier to weld with stable results, while 6061 depends more on joint design, interpass temperature, and filler metal matching.
Strength retention.
5083 generally holds up better after welding than 6061. It commonly uses 5xxx filler metal and achieves higher joint efficiency. In 6061-T6, the heat-affected zone is often the failure location. For field welding without post-weld solution treatment and aging, allowable stress for 6061-T6 usually needs to be re-evaluated.
Corrosion resistance.
5083 remains stable in seawater and industrial environments and keeps good corrosion resistance after welding. 6061 may show intergranular corrosion tendency in the heat-affected zone, so marine environments require caution.
If the structure will be exposed to moisture, salt spray, or chemicals, 5083’s overall advantage becomes clearer.
– 5083: ER5183 or ER5356 is preferred for a good balance of strength and corrosion resistance.
– 6061: ER4043 or ER5356 is common; ER4043 offers better crack resistance but limited strength, while ER5356 offers better strength but requires crack control.
– Dissimilar 5083-to-6061 joints: 5xxx filler is preferred; avoid 4xxx filler because of property mismatch on the 5083 side.
Filler metal is only the starting point. Heat input, pass sequence, and groove geometry also determine final joint quality.
Choose 5083 if you have high welding volume, a corrosive environment, field welding without post-weld heat treatment, or a need for a wide process window.
Choose 6061 if machining is the main process, welds are few, T6 base-metal strength is required, and full post-weld heat treatment is possible.
When welding is the core operation, 5083 is usually more robust. 6061 suits applications with limited welding and a stronger priority on base-metal strength. Uniform composition and controlled residual stress in the base plate are also prerequisites for reliable welding.

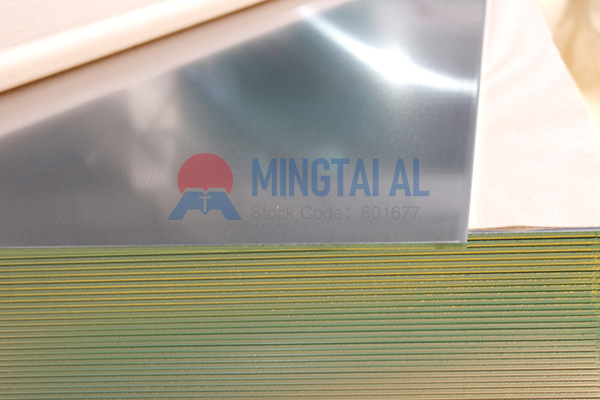

For 5083 vs 6061 for welding, the safest rule is to match the alloy to the welding conditions, not just the base-metal strength. If you need 5083 or 6061 aluminum plate for welded structural parts, Mingtai Aluminum supplies stable-composition plate with controlled internal stress. We only supply aluminum plate and coil, without surface treatment or further processing.
Q1: Can 5083 and 6061 be welded directly to each other?
A: Yes, but dissimilar joints are more crack-sensitive, so ER5356 or ER5183 and controlled heat input are recommended.
Q2: Does 6061 require T6 heat treatment after welding?
A: If high strength is required, usually yes; otherwise heat-affected zone softening will limit allowable values.
Q3: Which alloy is better for marine welded structures?
A: 5083 is usually the better choice because it offers better as-welded corrosion resistance and mechanical stability.
Q4: What filler metal should be used for 5083 welding?
A: ER5183 or ER5356 is recommended for a good balance of strength and corrosion resistance.
Q5: Why does 6061 become softer after welding?
A: Welding heat dissolves or coarsens Mg₂Si precipitates, and natural aging cannot restore T6 properties.
