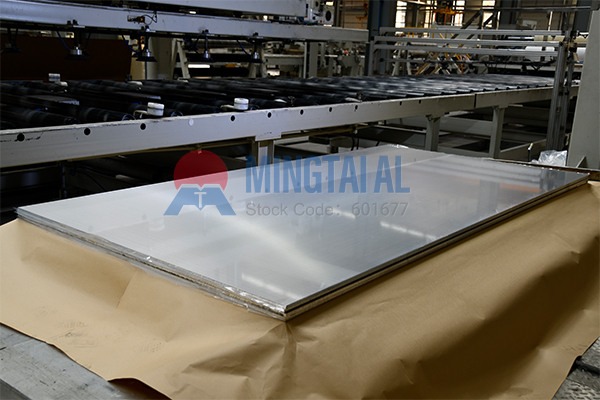

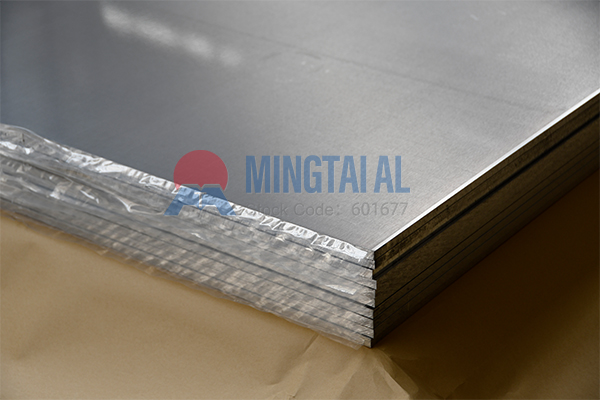

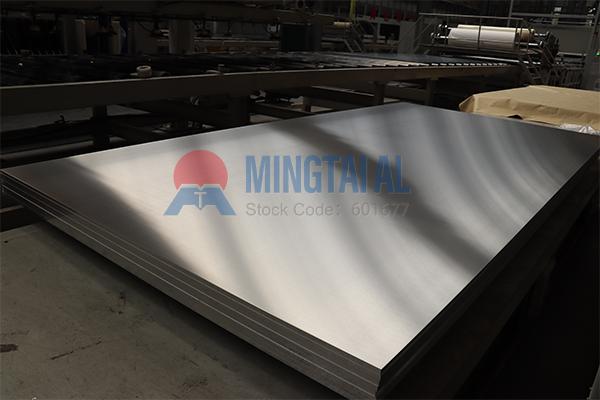

6082 aluminum sheet is a heat-treatable aluminum alloy from the 6000 series (Al-Mg-Si), known for its moderate strength, high corrosion resistance, and excellent weldability. Widely used in transportation, construction, and industrial manufacturing.
6082 aluminum sheet is a heat-treatable aluminum alloy from the 6000 series (Al-Mg-Si), known for its moderate strength, high corrosion resistance, and excellent weldability. Widely used in transportation, construction, and industrial manufacturing, its lightweight properties significantly reduce structural load while meeting corrosion resistance requirements in harsh environments, making it an ideal substitute for traditional steel. Through solution heat treatment + aging, its mechanical properties can be further enhanced, adapting to diverse processing needs and providing reliable solutions for engineering projects.
1. Transportation: Ship decks, hull components, truck frame structures, railway carriage fittings
2. Construction: Bridge trusses, roof frameworks, curtain wall keels, seismic supports
3. Industrial Manufacturing: Automation equipment housings, hydraulic valves, hydraulic pistons, precision instrument brackets
4. Marine Engineering: Offshore platform structures, corrosion-resistant pipelines, desalination equipment housings
|
Alloy |
6082 aluminum sheet sheet |
|
Temper |
F,O,T4,T6,T651,etc. |
|
Thickness (mm) |
0.30-600 |
|
Width (mm) |
500-2650 |
|
Length (mm) |
500-16000 |
|
Application |
Camera lenses, industrial molds, containers, mold, etc. |
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Zr |
Others |
AL |
|
|
6082 |
0.7-1.3 |
0.50 |
0.10 |
0.4-1.0 |
0.6-1.2 |
0.25 |
0.20 |
0.10 |
- |
Single |
Total |
Balance |
|
0.05 |
0.15 |
|||||||||||
|
Alloy & Temper |
Tensile strength Rm/Mpa |
Yield strength Rp0.2/Mpa |
Elongation % |
Hardness HBWα |
|
6082-T6 |
310 |
260 |
6 |
90 |
Density only 1/3 of steel, tensile strength exceeding 205 MPa, reducing transportation and installation costs.
High magnesium content forms a dense oxide layer, suitable for humid, salt-spray, and other harsh environments.
Supports welding, stamping, bending, CNC machining, meeting customized demands.
Extended maintenance-free lifespan reduces total lifecycle cost by over 30% compared to steel.
"Our company has been sourcing 6082 aluminum sheets for ship component production long-term. Its seawater corrosion resistance far exceeds expectations, cutting hull maintenance costs by half. During processing, it cuts cleanly without blade sticking and bends crack-free, perfectly matching automated production line requirements. Even better, after anodizing, the surface finish significantly improves—clients proactively requested additional orders for aesthetic parts, achieving both functionality and visual appeal!" — Procurement Director, Shipbuilding Company
