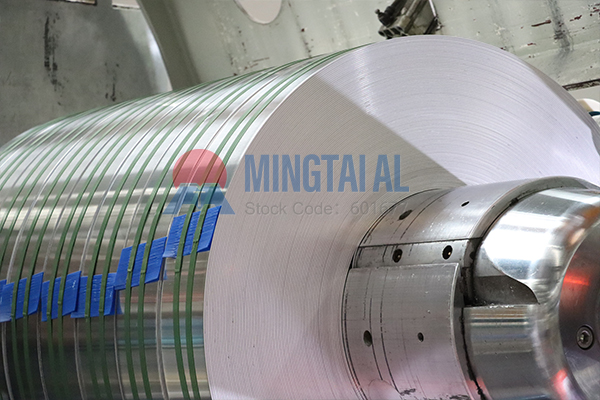

aluminum alloy for heat exchangers

Aluminum is one of the most widely used materials in heat exchanger manufacturing, yet the differences between common alloys are often underestimated. When selecting an aluminum alloy for heat exchangers, three grades stand out: 3003, 4343, and 6063. Each serves a distinct role, supports different fabrication methods, and meets specific design requirements.

Choosing the right one improves performance and avoids downstream issues in forming, joining, or service life. The following breakdown covers composition, properties, and real-world applications for each alloy.

3003 – The Workhorse for Fins and Core Layers

3003 belongs to the Al-Mn (3xxx) series, with manganese content between 1.0% and 1.5%. It is a non-heat-treatable alloy that gains strength through cold working.

Key characteristics:

– Thermal conductivity: approximately 190–193 W/(m·K) – among the higher levels for common aluminum alloys

– Density: 2.73 g/cm³, offering clear weight advantages

– Tensile strength (H14 temper): 125–185 MPa, depending on the temper

– Excellent atmospheric corrosion resistance

Typical applications in heat exchangers:

– Fins for automotive radiators, condensers, and evaporators

– Fins for HVAC cooling coils and industrial coolers

– Core layer in 4343/3003 brazing sheet – the 3003 core provides structural strength and corrosion resistance, while the outer layer handles brazing

In short: 3003 is the most versatile base material – it conducts heat well, forms easily, and resists corrosion effectively.

4343 – The Brazing Enabler

4343 is an Al-Si (4xxx) alloy, typically containing 6.8%–8.2% silicon. It is not used as a standalone structural material; instead, it is applied as a cladding layer over a core alloy like 3003.

The critical advantage – melting point differential:

– 4343 melts at approximately 577–590°C

– The 3003 core melts above 650°C

– This 60–70°C gap creates a safe brazing window – the cladding melts and flows to form joints while the core remains solid

Thermal and cladding data:

– Thermal conductivity of 4343: about 180 W/(m·K)

– Cladding ratio per side: typically 4%–18%, adjustable to suit specific brazing parameters

Typical applications:

– Used exclusively in clad products – single-side (4343/3003) or double-side (4343/3003/4343)

– Found in automotive water tank tubes, condenser tubes for AC systems, and plate heat exchanger cores

In short: Without 4343, reliable high‑efficiency brazing of aluminum heat exchangers would be far more difficult.

6063 – The Extrusion Expert for Tubes and Profiles

6063 is an Al-Mg-Si (6xxx) alloy that is heat-treatable. It gains strength through T5 or T6 aging treatments, making it ideal for extruded shapes.

Key properties:

– Thermal conductivity: approximately 193–218 W/(m·K)

– Tensile strength (T6 temper): 180–240 MPa – notably higher than 3003

– Excellent extrudability – capable of producing thin‑wall tubes (down to 0.5 mm) with complex cross‑sections, including internal ribs for enhanced heat transfer

– The material itself has good surface‑finish adaptability (this is a material property, not a service we offer)

Typical applications:

– Heat exchanger headers and manifolds

– Extruded fin tubes and heat sink profiles

– Micro‑channel tubes for compact heat exchangers

In short: When a component needs a complex extruded shape, 6063 is the go‑to choice – something neither 3003 nor 4343 can provide.

Side‑by‑Side Comparison – See the Differences at a Glance

Key insight: These three alloys are not competitors – they are collaborators. For example, 4343/3003 clad sheet combines the brazing function with structural support, while a 3003 fin assembly often works alongside a 6063 manifold. The question is not “which is best” but “which fits your fabrication process and component geometry.”

Guidelines for Selection

– If your product is fins – 3003 is the industry standard. Its thin‑gauge formability, thermal performance, and brazing compatibility have been proven over decades.

– If brazed assembly is required – Consider a 4343/3003 clad solution. The 4343 layer enables reliable brazing, while the 3003 core maintains mechanical integrity.

– If your component is an extruded tube or profile – 6063 is the primary candidate. It handles complex sections, thin walls, and higher strength demands.

– If multiple components are involved – Do not restrict yourself to one alloy. Use 3003 for fins, 6063 for headers, and 4343/3003 for brazed joints – this mixed approach is standard practice in the industry.

When choosing an aluminum alloy for heat exchangers, focus on the manufacturing route and the specific function of each part. We supply standardised sheets, strips, and foils in all the grades mentioned above, without any surface treatment or secondary fabrication – ensuring consistent material quality from the start.

FAQ

Q: Which has better thermal conductivity – 3003 or 6063?

A: Both are close – 3003 at ~190–193 W/(m·K) and 6063 at ~193–218 W/(m·K); the choice depends more on formability and strength requirements.

Q: Can 4343 be used alone for heat exchanger parts?

A: No – its low melting point and low strength require it to be clad onto a stronger core like 3003.

Q: Which alloy offers the highest strength among the three?

A: 6063 (T6) delivers 180–240 MPa, higher than 3003 (125–185 MPa) and 4343 (which is not used structurally).

Q: What is the typical cladding ratio of 4343 on 3003 core?

A: Usually 4%–18% per side, adjustable to match the brazing process.

Choosing the right alloy is the first step in heat exchanger manufacturing. Mingtai Aluminum supplies a full range of 3003, 4343/3003 clad, and 6063 aluminium sheets, strips, and foils in thicknesses from 0.1 mm to 3.0 mm. Inquiries and custom specifications are always welcome.
