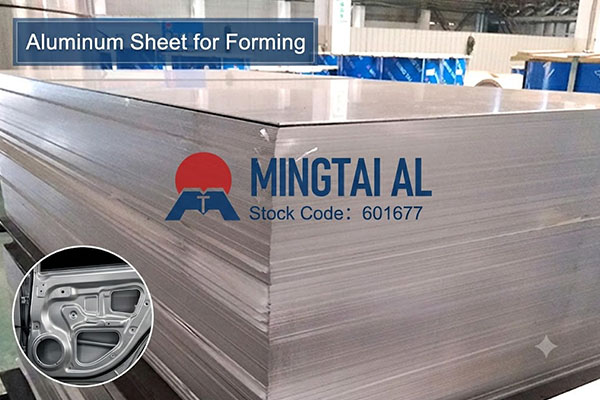

What to Look for When Buying Aluminum Sheet for Forming

Introduction – One Decision Makes or Breaks Your Parts

When you need to buy aluminum sheet for forming – for stamping, bending, or deep drawing – it’s completely different from buying ordinary aluminum sheet. Pick the wrong material, and the sheet cracks before the die closes. Or it springs back so much that your dimensions never stay correct. This guide covers the real metrics that forming shops should check before ordering.

Alloy First: Not Every Aluminum Sheet Can Bend

Different alloys have very different forming ability. If you are deep drawing parts (like fuel tanks or housings), 1050 or 1060 in O temper is your best choice. Elongation can exceed 25%. For medium-strength bending or stamping (like heat sinks or automotive interior panels), 3003 and 5052 are the most common – 3003 is softer and easier to form, while 5052 is stronger and more fatigue-resistant. For parts that need welding before forming, the 5000 series (e.g. 5083) works well. One rule of thumb: the more complex the forming, the smaller the alloy number (pure aluminum) or the softer the temper.

Then the Temper: O, H14, and H32 Are Very Different

– O temper (fully soft annealed) – like dough. Great for deep drawing and bulging. Disadvantage: low final strength (you can dent it with your thumb).

– H1x series (strain hardened) – e.g. H14. Medium hardness, bends without cracking. A universal choice for ordinary stamping and bending.

– H2x series (strain hardened then partially annealed) – stable properties. Good for formed parts that need consistent hardness over time.

– H3x series (stabilized) – prevents natural aging at room temperature. Suitable for material that will be stored for a long time.

A common customer question: “Should I buy O temper or H14?” Answer: Use O temper for deep drawing, and H14 for ordinary bending / shallow stamping. If unsure, ask for a sample and test it yourself.

Mechanical Properties: Focus on Elongation and Yield Ratio

When you get the mill test certificate, don’t just look at tensile strength. Here is what really matters for forming:

– Elongation – the real key. Below 8%: forget about bending. 10–15%: OK for moderate bending. Over 20%: suitable for deep drawing.

– Yield-to-tensile ratio – the lower the ratio, the easier the material flows and the less springback you get.

  – Example: O temper aluminum has a ratio around 0.4–0.5, with very little springback.

  – Counter‑example: T6 temper (generally not used for forming) has a ratio >0.9 – it springs back as soon as you release it.

Thickness Tolerance: Directly Affects Die Clamping

During stamping, the gap between the upper and lower die is fixed. If the aluminum sheet thickness varies by more than 0.05mm, thin areas become loose (wrinkles) and thick areas get squeezed (cracks). So before buying, always ask: Which standard are you shipping to? ASTM B209 common grade gives thickness tolerance around ±0.08–0.10mm. Precision grade can reach ±0.03mm. For progressive die stamping, always ask for precision grade tolerance.

Flatness and Warping: Impacts Feeding and Positioning

Sheets cut from coils often come with wavy edges or bow warping. When fed into an automatic stamping line, they cause problems. Here is how to handle it:

– The risk – warped sheets can jam the feeder or misalign the pilot holes.

– The solution – ask the supplier to perform stretcher leveling and provide the flatness value per meter.

– The numbers – for general forming, ≤3mm/m is enough. For high‑precision progressive dies, you want ≤1.5mm/m.

Size and Batch Consistency: The Key to Avoiding Repeated Die Adjustments

Wider sheets give better material utilization, but also higher risk of waviness. Common widths: 1000mm, 1250mm, 1500mm. Also, avoid long coils with butt welds – the weld area has sudden hardness changes and will crack during forming. Before ordering a large quantity, request a sample for tool testing, and check that the mill test certificate (MTC) matches the sample in alloy, temper, and mechanical properties. If hardness varies by more than 5% between batches, you will have to readjust your dies every time.

Quick Self‑Check: Your Forming Problems May Come From the Material

Final Buying Advice

Don’t only compare price. If your forming yield drops by 5%, the waste and debugging costs will far exceed any material savings. Ask the supplier for measured elongation and thickness tolerance reports, and buy 10 kilos for a trial run first.

> For reliable aluminum sheet for forming from pure aluminum to 5xxx series, Mingtai Aluminum provides traceable mechanical property reports with every batch. You can contact them directly for test samples.

FAQ

Q1: What is the best aluminum sheet for deep drawing a 50mm deep cylinder?

A1: 1050 or 1060, O temper – elongation over 20% gives one‑step forming without cracking.

Q2: Can H14 aluminum sheet be bent 90° and stay on the die?

A2: Yes, with a minimum bend radius of about 3× sheet thickness, preferably along the rolling direction.

Q3: Can I use ±0.1mm thickness tolerance sheet for precision stamping?

A3: No – precision stamping requires precision grade tolerance around ±0.03mm.

Q4: A supplier says their sheet is “forming grade”. How do I verify?

A4: Ask for the MTC and check elongation (≥10%) and yield‑to‑tensile ratio (≤0.7), then do a 90° bend test.

Q5: What thickness and width range does Mingtai Aluminum offer for forming sheet?

A5: Thickness 0.2mm–6.0mm, width up to 2600mm – ask their sales team for details.
