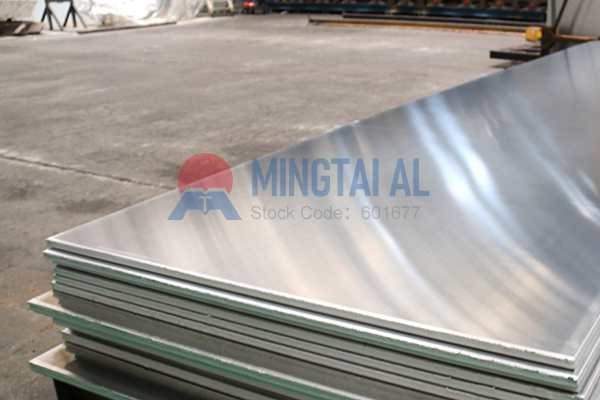

In stamping, bending, deep drawing, and other forming processes, many engineers face the same old problem: a soft material is easy to form but the finished part lacks strength; a hard material gives strength but cracks during bending. Aluminum sheet H32 sits right at the best balance point – strong enough for structural use, yet ductile enough for forming. That’s why it has become the “evergreen” choice in sheet metal forming.
H32 belongs to the strain-hardened (H temper) series of aluminum.
How it’s made: Cold worked (rolled) to increase strength, then stabilized.
The result: A “quarter-hard” condition – significantly stronger than fully annealed (O temper), while keeping good plasticity.
Take the most common grade, 5052-H32, as an example:
Tensile strength: around 210–260 MPa
Elongation: 12%–18%
What does that mean?
It bends more easily than full-hard H38, yet supports more load than soft O temper.
① Very reliable bending performance
H32 temper is considered the “benchmark” for sheet metal bending in the industry. At standard inside bend radii (typically 1× sheet thickness), it rarely cracks. In contrast, heat-treatable alloys like 6061-T6 are much stronger but crack easily when bent. For parts that need multiple bends – chassis, brackets, enclosures – this reliability directly affects your scrap rate.
② Handles multi-step compound forming
A single H32 sheet often goes through punching, flanging, drawing, bending, and more. Its moderate hardness means less impact and wear on your tooling – longer die life. Plus, it stays dimensionally stable after multiple deformations, without becoming brittle from work hardening too quickly. That means you can skip intermediate annealing, saving time and cost.
③ Corrosion resistance doesn’t drop after forming
5000-series aluminum‑magnesium alloys (like 5052) have natural “anti‑rust genes”: magnesium helps form a protective oxide film. They resist salt spray, humid air, and industrial atmospheres very well. Most importantly, even after severe forming – stamping, bending – that protection remains. This is why marine components, chemical tanks, and automotive fuel tanks use H32 so widely.
④ Best cost‑performance balance between strength and formability
If you look only at formability, O temper (annealed) is softer and easier. If you look only at strength, H34 (half‑hard) is stronger. But most real parts need some strength to resist service loads, and also need to be formed quickly at low cost. H32 sits right between these two extremes – and it doesn’t cost as much as special heat‑treated alloys. That’s the value that mass production loves.
H32 vs. O temper
O is easier to form, but the finished part can be dented by hand.
H32 is about 30%–50% stronger – suitable for load‑bearing parts (e.g., equipment enclosures, brackets).
H32 vs. H34 (half‑hard)
H34 has higher strength, but requires a larger inside bend radius (typically ≥2× thickness) and is prone to cracking on complex bends.
For parts with multiple bends or tight radii, H32 is the safer choice.
H32 vs. 3003‑H14
3003 is a manganese‑based alloy – soft and deep‑draws well, but has only about half the strength of 5052‑H32, and much poorer corrosion resistance.
For any part exposed to moisture or needing moderate strength, H32 is clearly better.
– Automotive parts – fuel tanks, engine peripheral brackets, bus floor panels. Need both stamping formability and vibration/fuel corrosion resistance.
– Marine sheet metal – deck coverings, bulkhead panels, outboard motor brackets. Saltwater corrosion is a hard requirement – H32’s salt‑spray resistance is a core advantage.
– Electronics enclosures – laptop base covers, communication chassis. Require high flatness, ability to stamp complex cooling holes, plus EMI shielding and heat dissipation.
– Architectural decorative components – elevator panels, curtain wall liners. Good surface flatness after forming, ready for further finishing (done by customers).
– Chemical equipment and tanks – small pressure vessels, chemical storage tanks. Weldability combined with retained corrosion resistance, at a controllable forming cost.
– Minimum bend radius – For H32, inside radius should generally be ≥1× sheet thickness (e.g., 2.5mm radius for 2.0mm sheet). Larger than O temper, but much smaller than what 6061‑T6 requires.
– Bending direction – Align the bend line perpendicular to the rolling direction (i.e., across the grain). This greatly reduces cracking risk. If perpendicular isn’t possible, increase the radius slightly.
– Tooling and lubrication – Use forming‑specific lubricants. Set die clearance at about 1.05–1.1× sheet thickness. H32 has slightly more springback than O temper – over‑bend a little so the final angle is correct.
– Avoid excessive cold working – Even though H32 handles multiple forming steps, don’t repeatedly bend the same area. Local work hardening can still cause cracks after too many hits.
Choose Mingtai Aluminum for consistent quality and reliable supply of aluminum sheet H32 across standard alloys and dimensions – from 5052 to 5754. With strong production capacity and global shipping, Mingtai helps you get the right forming material on time.
Q1: Is H32 aluminum sheet easy to bend?
A1: Yes. It rarely cracks at standard bend radii and is the industry benchmark for sheet metal bending.
Q2: Which is better for forming – H32 or O temper?
A2: O temper is softer and easier, but H32 is much stronger – choose H32 for parts that need to carry loads.
Q3: What is the minimum bend radius for 5052-H32?
A3: Typically 1× sheet thickness as inside radius (e.g., 2mm radius for 2mm sheet). Increase slightly for complex shapes.
Q4: Does H32 aluminum sheet resist corrosion well?
A4: Very well, especially against salt spray, humid environments, and industrial atmospheres. Forming does not reduce its corrosion resistance.
Q5: For complex bent parts, H32 or H34?
A5: Choose H32. H34 is stronger but much more likely to crack. H32 is safer for multi‑bend or tight‑radius parts.
Q6: Can H32 aluminum sheet be welded?
A6: Yes. Both TIG and MIG work well; use ER5356 filler rod for minimal strength loss in the weld.
